Product Name: PS-3010 Automatic Soil CO2/CH4 Flux System
上市Date:2018-05-04

Portable survey measurement system

PS-3010  Automatic Soil CO2/CH4  Flux System


Preface

Irrational greenhouse gas (GHG) emissions from human activities have a significant impact on global climate change. Greenhouse gases mainly includes CO2 CH4 N2OH2OOCS, etc. Among them, CO2 CH4 and N2O are considered to be main GHG and has been widespread concerned. Soil greenhouse gas respiration is an important flow path in the global greenhouse gas cycle. The loss of CO2, CH4 and N2O in the soil significantly increased the gas content of CO2, CH4 and N2O in the atmosphere and enhanced greenhouse gas effects. On-line, long-term and accurate measurement of soil greenhouse gas flux, which are of great significance to the study of greenhouse gas flux.

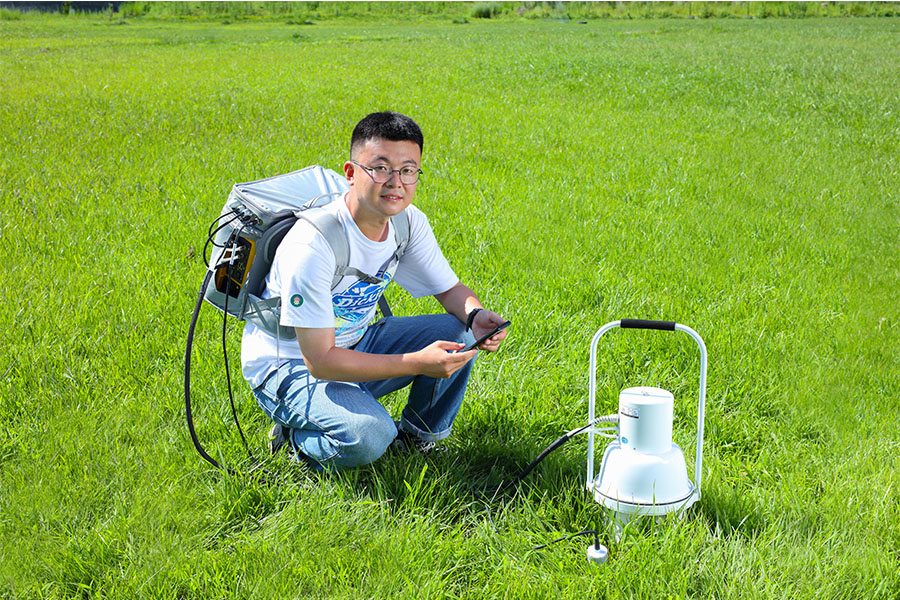

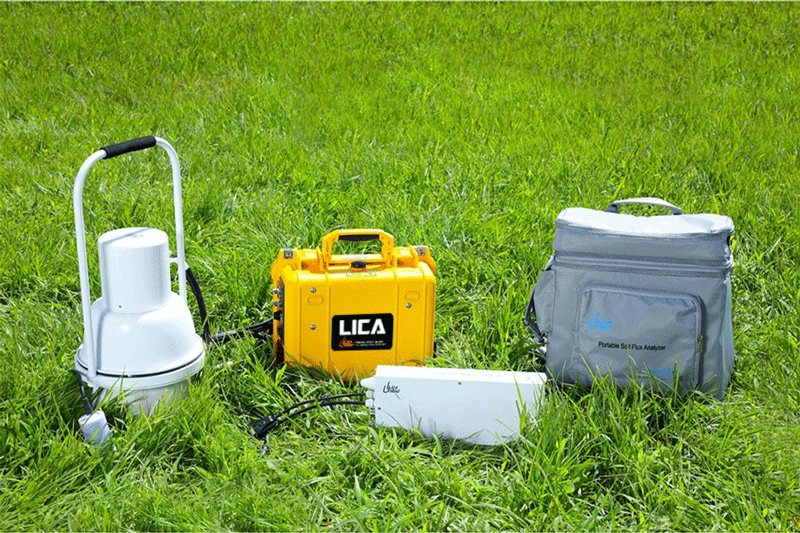

The Automatic soil CO2/CH4 Flux system is a portable survey measurement system that utilizes the chamber method to measure soil CO2 and CH4 flux emissions. The system includes ABB LGR gas analyzers, PS-3010 control unit and SC-12 soil Survey Chamber.



PS-3010 control unit has the function of control, data storage, and data analysis, and it can set a variety of measurement parameters through the wireless cell phone APP in real-time and display the measurement results of the instrument at the same time. PS-3010 can read the changes of CO2, CH4 and H2O in the survey chamber measured by the Microportable greenhouse gas analyzer (MGGA) in real time, and combine the monitoring data of the air temperature, atmospheric pressure and soil temperature. The CO2 and CH4 emission flux values are then can be obtained. Meantime the acquired raw data and the calculated flux results are stored in the SD card.



SC-12 soil survey chamber can automatically repeat measurements. It is controlled by PS-3010. And it is light, easy to carry and operate in situ. Uniquely designed, measurement results will be more accurate.






Main features



u  The analyzer could measure CO2, CH4 and H2O flux at the same time.

u  The analyzer’s measuring frequency could reach 10Hz.

u  The system is highly integrated: the control system and MGGA analyzer were highly integrated and can be displayed through phone APP.

u  Simplified user interface, could easily get the results with only a few operations.

u  No need the steps of data post-processing, the measured results can be directly displayed and saved.

u  The energy consumption is as low as 35 W.



PS-3010  Automatic Soil CO2/CH4  Flux System



Specifications



u  Analyzer: Microportable Green Gas Analyzer (MGGA)

Measure three gasesCO2, CH4, H2O simultaneously

Repeatability/Precision

(1δ, 1 sec / 10 sec)

CH40.9 ppb / 0.3 ppb

CO20.35 ppm / 0.12 ppm

H2O200 ppm / 60 ppm

Measurement Range

CH40~100 ppm (standard range)

CH0~1% (extended range)

CO20~20000 ppm

H2O0~30000 ppm

Environment conditions:

Sample temperature: -40 – 50 °C

Operation temperature: 5 – 45 °C

Environment wetness:

99% RH, no condensations

Data measurement rate:

0.01 – 10 Hz (user selectable)

Flow response time: 1s (1/e)

Data output:

WiFi / USB / Ethernet / MIU / RS-232

Power requirements: 35 watts

Size and weight:

34×29.5×12 cm 5.4 kg



u  PS-3010 Control Unit

Display screen: Mobile app Android

Micro-processor: ARM Cotex-M3

Operating temperature: - 20 ~ 60

Power requirements:  < 3.5 W

Storage medium: SD card

Communication interface: WiFi, RS-232, SDI-12

Synchronous pump: 12 V, < 0.2 A

Flow rate: 1.5 L / min

Battery type: 24 V ~ 8 AH lithium battery

Battery life: 3 ~ 4 Hours (single battery)

Weight: 3 kg



u  SC-12 Soil survey chamber

Measuring Area276.27cm²

Fixed volume of air chamber3451.00cm³

Cable Length2 m

Power requirements:  < 4.1 W

Dimensions27.5 x 24.5 x 44.5 cm

Weight3.9 kg



u  LI-520A Soil temperature and humidity sensor

Humidity measurement range 0-100%

Accuracy±2%(0-50%),   ±3%(51-100%)

Temperature measurement range-30 ~ +70

Accuracy±0.5

Communication mode: SDI-12

Cable Length2 m





u  Ordering Information

1. GLA131-GGA: MGGA CO2/CH4 analyzer

2. PS-3010: Control Unit

(Including instrument storage and control module, backpack, two lithium batteries, two lithium battery chargers, soil temperature and humidity sensor, a handheld controller, etc.)

3. SC-12: Soil survey chamber





Support: Provide technical support and service for life

Manufacturer: ABB, Canada / LICA, China
