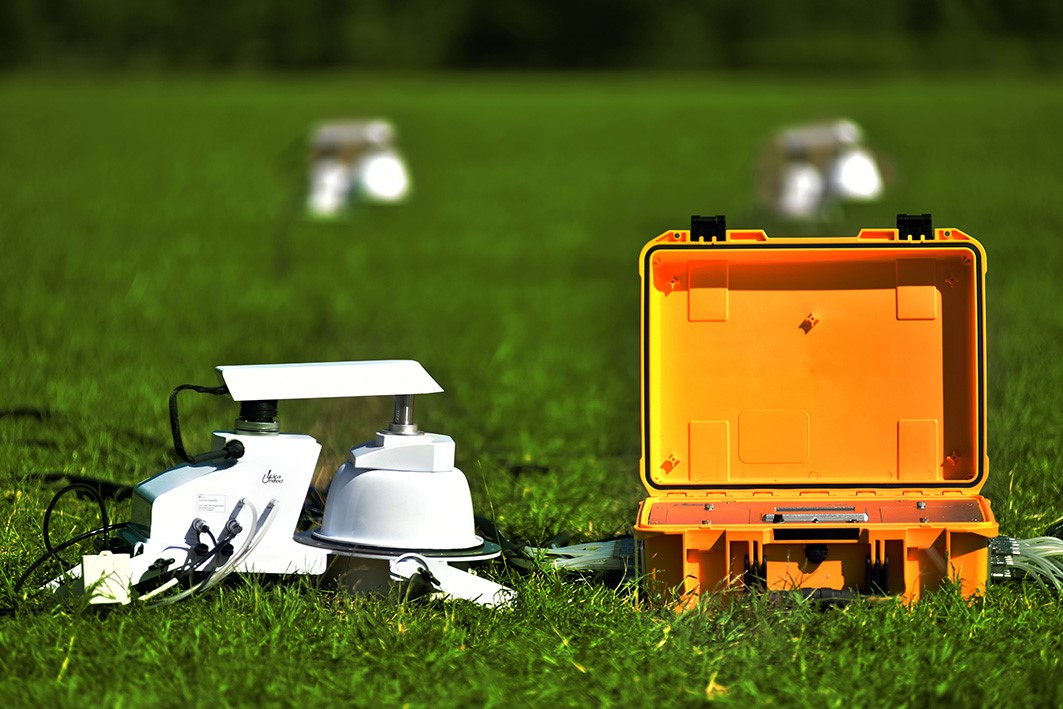

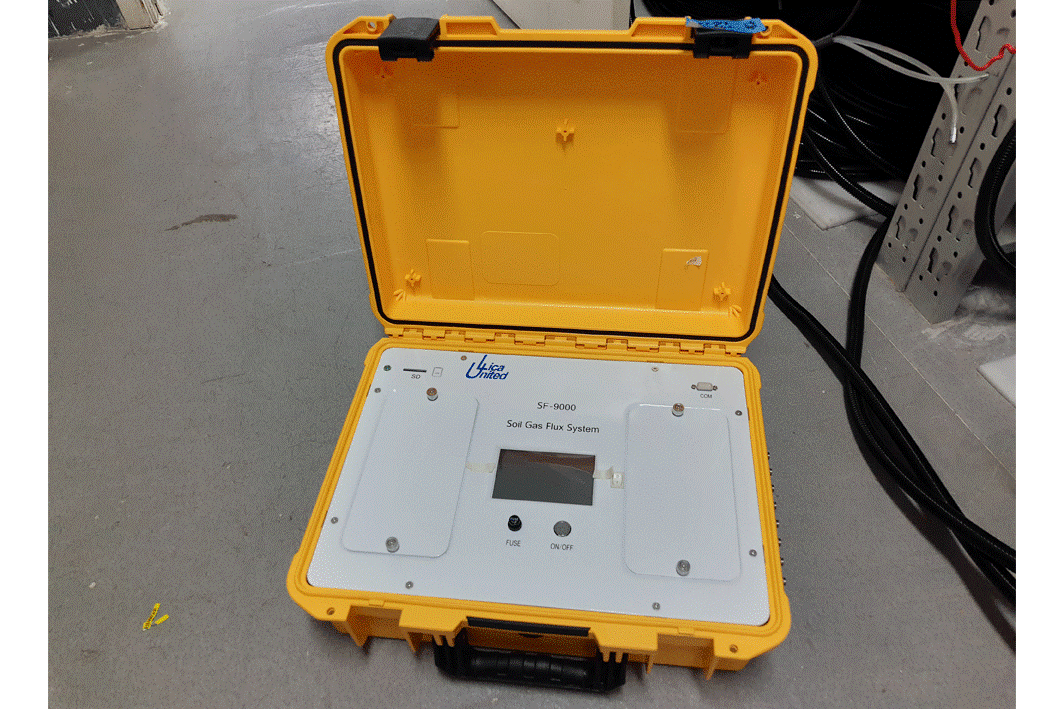

The SF-9000 Multi-Channel Soil Carbon Flux Automatic Measuring System, manufactured by LICA in China, is capable of measuring soil CO2 flux at various locations, enabling continuous and long-term monitoring of soil carbon flux. The SF-9000 can operate with up to 18 soil chambers and is also suitable for studying CO2 and water vapor profiles.

Main features:

The control system supports the connection of up to 18 soil chambers, making it ideal for experimental designs that require multiple repetitions and processes.

It allows for long-term field monitoring without the need for human supervision, facilitating continuous, high-precision, and automatic unattended monitoring.

The system automatically calculates gas flux without the need for post-processing of data. Each chamber can be equipped with additional sensors, such as those for measuring soil temperature and moisture.

The system is lightweight, energy-efficient, and built for durability.

The storage medium utilized is an SD card.

Specifications

u  SF-9000

Measurement principle: non dispersive infrared

Measuring range: CO₂ : 0-6000 ppm, H₂O : 0-60000 ppm

Accuracy:< 1% of the data reading

Repeatability / Precision: < 1 ppm

Operating temperature: - 20 ~ 60 ℃

Number of chamber: 9 or 18

Storage medium: SD card

Communication interface: RS-232 / RS-485 / SDI-12

Synchronous pump: 4.2 L / min Brushless diaphragm pump

Display: 5-inch LCD touch screen

Working Environment:

Temperature: - 20 ~ 60 ℃

Humidity: 0 ~ 95% RH (Non condensing)

Dimensions: 51 x 40 x 19 cm

Weight: 14.1 kg

u  SC-22 Automatic soil survey chamber

Measuring area: 276.27 (cm²）

Fixed volume of air chamber: 3243.8 (cm³)

Cable length: 15 m

Operating temperature: - 20 ~ 60℃

Air pressure detection:

measurement range: 15 ~ 115 kPa, measurement accuracy: ± 1.5%

Temperature detection:

measurement range: - 25 ~ 85℃, measurement accuracy: ± 0.5℃

Dimensions: 55 x 28 x 32 cm

Weight: 8.55 kg

u  LI-520A Soil temperature and humidity sensor

Humidity measurement range： 0-100%

Accuracy：±2%(0-50%),   ±3%(51-100%)

Temperature measurement range：-30 ~ +70℃

Accuracy：±0.5℃

Communication mode: SDI-12

Cable Length：2 m

u  Ordering Information

SF-9000-09: Multi-Channel Soil Carbon Flux Automatic Measurement System

                     Including CO2 and H2O analyzer, 9 channels, LCD screen, 1 adapter, 1 DC cable.

SF-9000-18: Multi-Channel Soil Carbon Flux Automatic Measuring System

                     Including CO2 and H2O analyzer, 18 channels, LCD screen, 1 adapter, 1 DC cable.

SC-22:         Automatic Long-term Soil Chamber

Support: Provide technical support and service for life

Manufacturer: LICA, China
