Product Name: SF-3500 Multi-Channel Automatic Soil Greenhouse Gas Flux Measuring System
上市Date:2018-12-10

Fast, Accurate, Synchronous,

Multi-parameter and Verifiable




SF-3500 Multi-Channel Automatic Soil Greenhouse Gas Flux Measuring System



Preface



Soil carbon and nitrogen cycling is an important component of carbon and nitrogen cycling in terrestrial ecosystems, small changes can lead to significant changes in greenhouse gas emissions. There is an antagonistic relationship between the effects of CO2CH4 and N2O in soil, like a “teeterboard”, in order to reveal the influencing factors and emission mechanism, it is necessary to measure carbon and nitrogen gas exchange simultaneously and accurately.

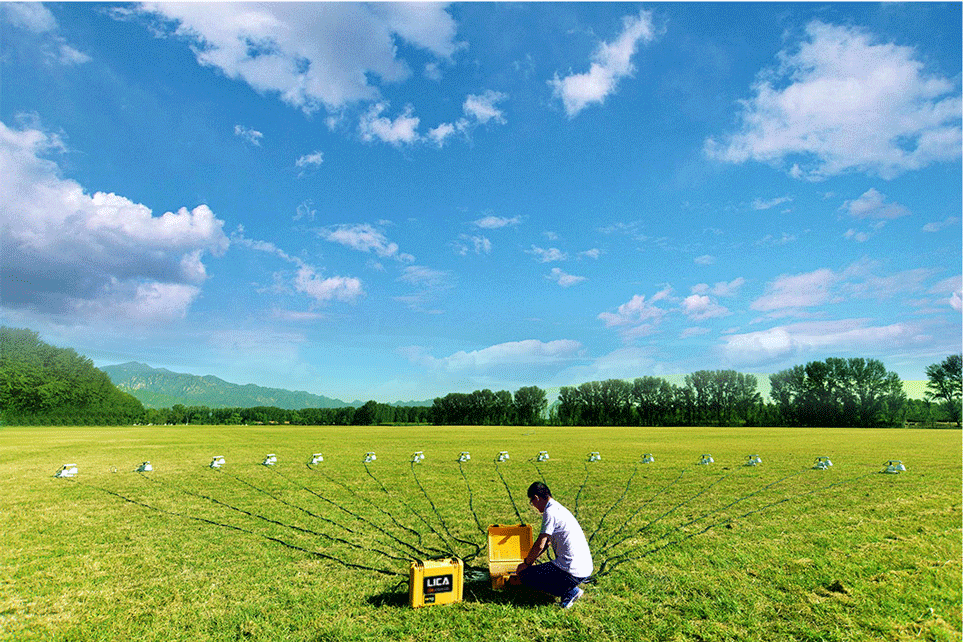

SF-3500 Multi-Channel Automatic Soil Greenhouse Gas Flux Measuring System, the latest instrument developed by LICA, it can measure N2OCH4CO2CO and water vapor fluxes in soil at multiple points, help scientists to realize continuous and long-term monitoring of soil carbon flux, as many as 18 chambers can be connected. Meanwhile, SF-3500 can also be used for the study on N2O, CH4, CO2, CO and water vapor profiles. SF-3500 has the function of control, data storage, and data analysis, etc..



SF-3500 Multi-Channel Automatic Soil Greenhouse Gas Flux Measuring System



Main features



u  Measure N2OCH4CO2CO and water vapor fluxes in soil at multiple points, realize continuous and    long-term monitoring of soil carbon flux;

u  The SF-3500 multiplexer can connect with 18 chambers, making it ideal for multi-repetition and multi-processing experimental designs; The SF-3500 multiplexer has the function of control, monitor, and review measurements from each chamber;

u  Soil chamber cable length:15 m (can be extended to 30m)

u  Continuous, High-precision, Automatic, Unattended, Long-term monitoring in the field;

u  Automatic calculation of gas flux without data processing;

u  Each chamber can be connected to auxiliary sensors, such as: Soil temperature and humidity sensor ;

u  Light weight, low energy consumption, the whole system is sturdy and durable.



Specifications



u  Portable N2O and CO analyzer

(N2O , CO)

Precision (1δ, 1 sec / 10 sec):

N2O: 0.5 ppb / 0.2 ppb      [<500 ppb]

CO: 0.5 ppb / 0.2 ppb       [<500 ppb]

H2O: 100 ppm / 40 ppm

Linear measurement ranges (meets all specifications):

N2O: Up to 4 ppm

CO: Up to 4 ppm

H2O: Up to 30 000 ppm

Operational ranges:

N2O: Up to 40 ppm

CO: Up to 40 ppm

H2O:<99% RH, non-condensing

Measurement rate:

0.01 – 1 Hz (user selectable)

Flow response time:

<30 seconds (1/e)

<10 seconds (1/e)

with external diaphragm pump ACC-DP3H

Data outputs:

WiFi, Ethernet, USB, Serial (RS-232)

Power:

24-30VDC, 110/240 VAC, 50/60 Hz

180 watts (steady state)

max 300 watts with ACC-DP3H

Dimensions:

51 x 61 x 20 cm

Weight:

23 kg



u  Portable Greenhouse Gas Analyzer

 (CH4, CO2, H2O)

Repeatability / Precision1δ, 1 s / 10 s / 100 s:

CH4: 1.4 ppb / 0.5 ppb / 0.2 ppb

CO2: 300 ppb / 100 ppb / 30 ppb

H2O: 50 ppm / 20 ppm / 10 ppm

Linear measurement ranges:

CH4: Up to 100 ppm

CH4: Up to 1% (with extended range option)

CO2: Up to 20,000 ppm

H2O: Up to 30,000 ppm

Operational ranges:

CH4: Up to 1000 ppm

CH4: Up to 1% (with extended range option)

CO2: Up to 3%

H2O:<99% relative humidity, non-condensing

Measurement rate:

0.01 – 1 Hz (user selectable)

Flow response time:

<8 seconds (1/e)

<2 seconds (1/e) with ACC-DP3H external pump

Data outputs:

Serial RS232, USB (x2), AO (16-bits, 0 to 5 V DC), Ethernet LAN connection, VGA display, MIU, WiFi 802.11 b/g/n, 300 Mbps

Power:

60 W (11–30 VDC)

66 W (100–240 VAC, 50/60 Hz)

Dimensions

18 × 47 × 36 cm

Weight:

16.9 kg



u  SF-3500 multiplexer

Chamber interface number 9 / 18

Storage mediaSD card

Data interfaceRS-232, RS-485, SDI-12

Display mode: 5-inch LCD touch screen

Synchronous pump: 3L / min , Brushless diaphragm pump

Working environment

Temperature-20~60

Humidity0~95% RHnon-condensing

Dimensions51 x 40 x 19 cm

Weight12.15 kg



u  Soil Chamber

Measuring Volume276.27cm²

Fixed volume of air chamber3243.8cm³

Cable Length15 m

Operating Temperature-20~60

Air Pressure Detection

15115 kPa (Range),±1.5% (Precision)

Temperature Detection

-2585 (Range) ±0.5 (Precision)

Dimensions55 x 28 x 32 cm

Weight8.55 kg



u  LI-520A Soil temperature and humidity sensor

Humidity measurement range 0-100%

Accuracy±2%(0-50%),   ±3%(51-100%)

Temperature measurement range-30 ~ +70

Accuracy±0.5

Communication mode: SDI-12

Cable Length2 m



u  Ordering Information

1.       GLA151-N2OCMPortable N2O/CO Analyzer

2.       GLA132-GGAPortable Greenhouse Gas Analyzer (CH4, CO2, H2O)

3.       SF-3500-9: Multiplexer,  Configuration1 Controller Host (9 channels, LCD), 1 Adapter, 1 DC cable

4.       SF-3500-18: Multiplexer, Configuration1 Controller Host (18 channels, LCD), 1 Adapter, 1 DC cable

5.       SC-22: Soil Chamber

6.       LI-520A: Soil temperature and humidity sensor





Support: Provide technical support and service for life

Manufacturer: ABB, Canada / LICA, China
